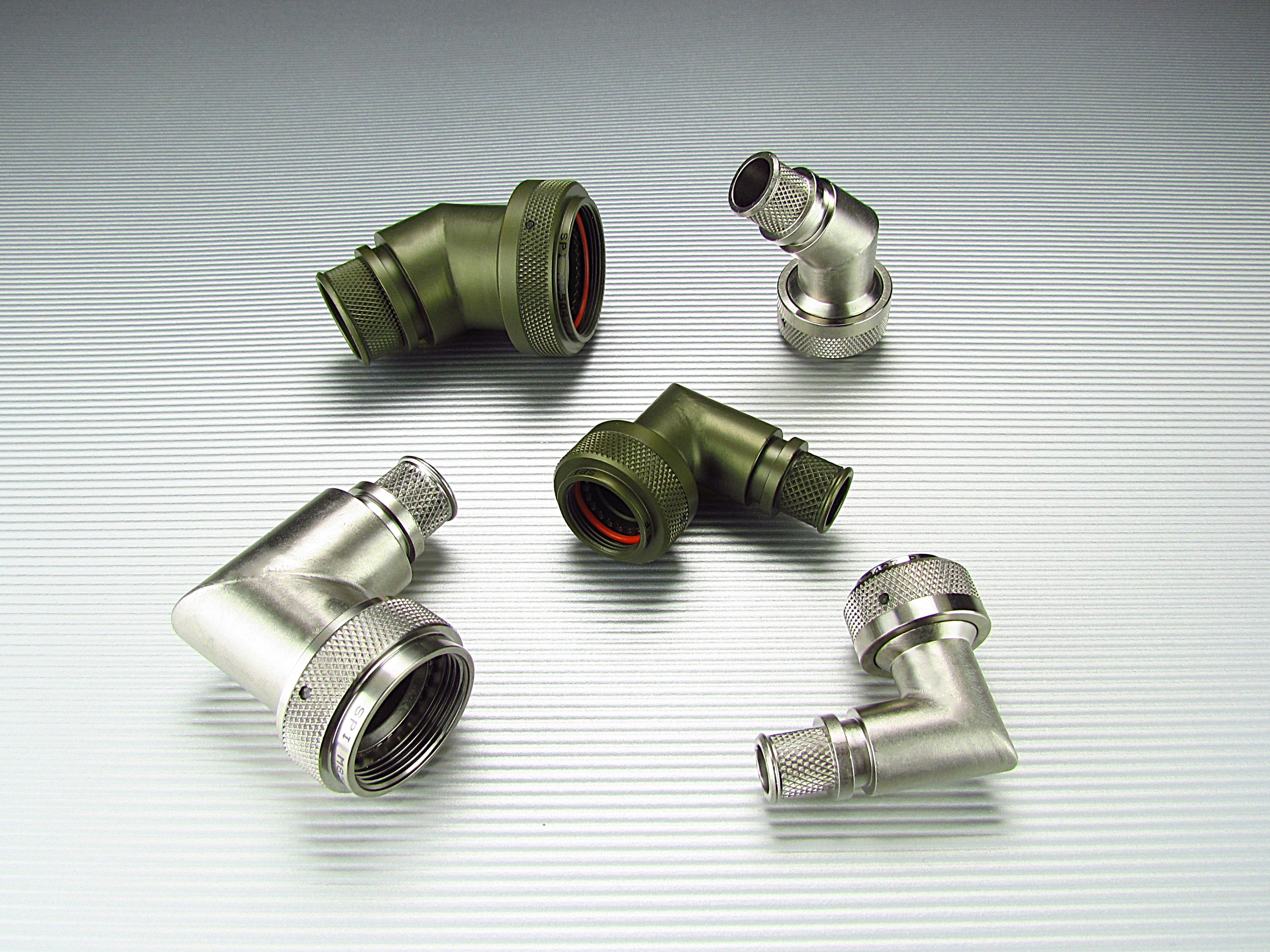

Straight, 45° & 90° Shield Band Termination (EMI/RFI), Shrink Sleeve Accommodation, Self-Locking

Includes: AS85049/82, /85, /88, /83, /86, /89, /84, /87, /90

• Overview
• Drawings
• How to order
• SPI Brochure

Straight Exit

SPI P/N	Military P/N	Specification	Use on Connector Series
SPI85049/82	M85049/82	AS85049/82	MIL-DTL-5015 Crimp MIL-DTL-26482 Series 2 AS81703 Series 3 MIL-DTL-83723 Series III

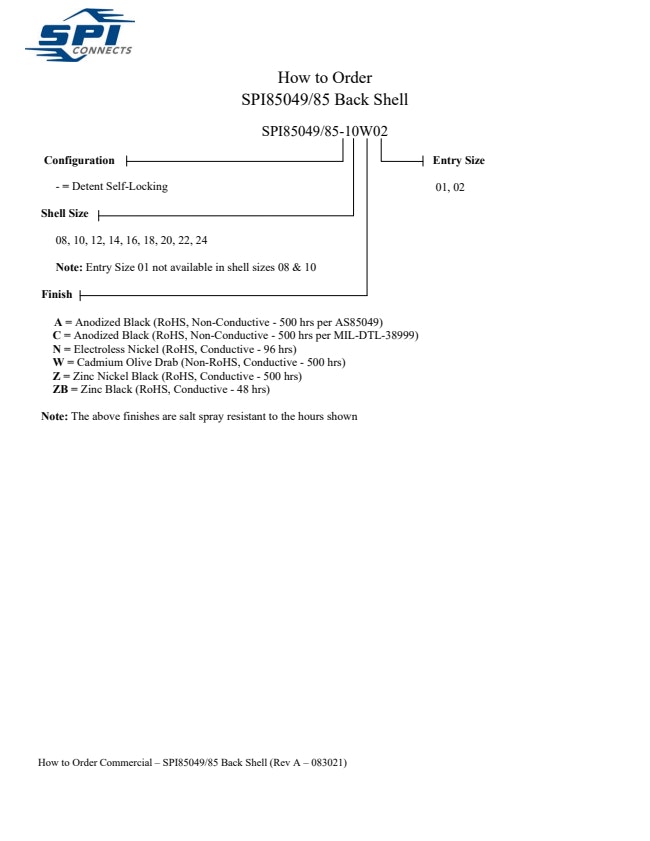

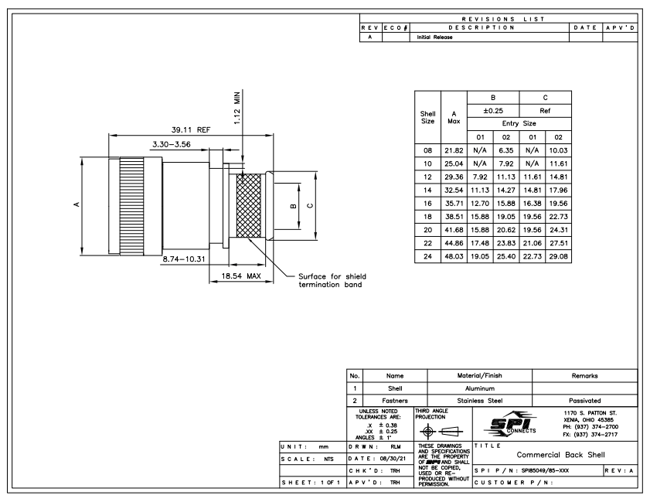

SPI85049/85	M85049/85	AS85049/85	MIL-DTL-38999 Series 1 & II

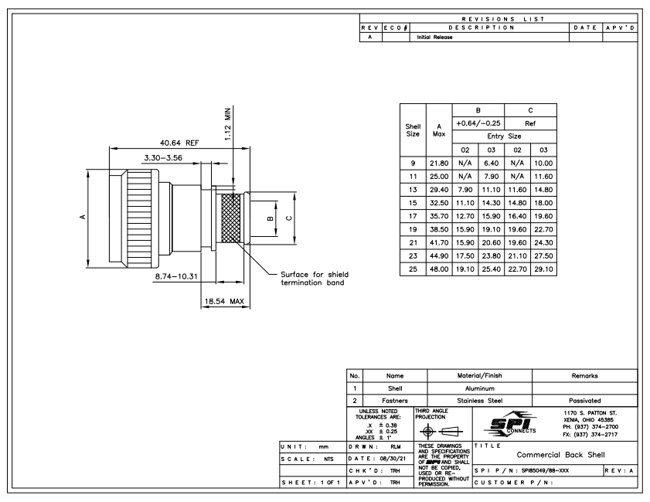

SPI85049/88	M85049/88	AS85049/88	MIL-DTL-38999 Series III & IV

45° Exit

SPI P/N	Military P/N	Specification	Use on Connector Series

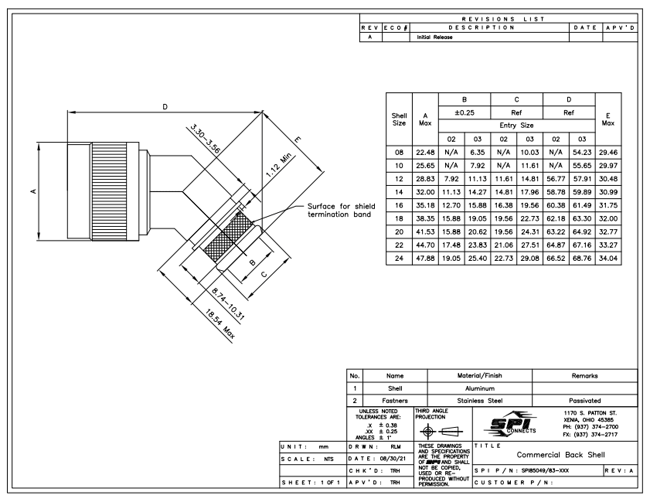

SPI85049/83	M85049/83	AS85049/83	MIL-DTL-5015 Crimp MIL-DTL-26482 Series 2 AS81703 Series 3 MIL-DTL-83723 Series III AS95234

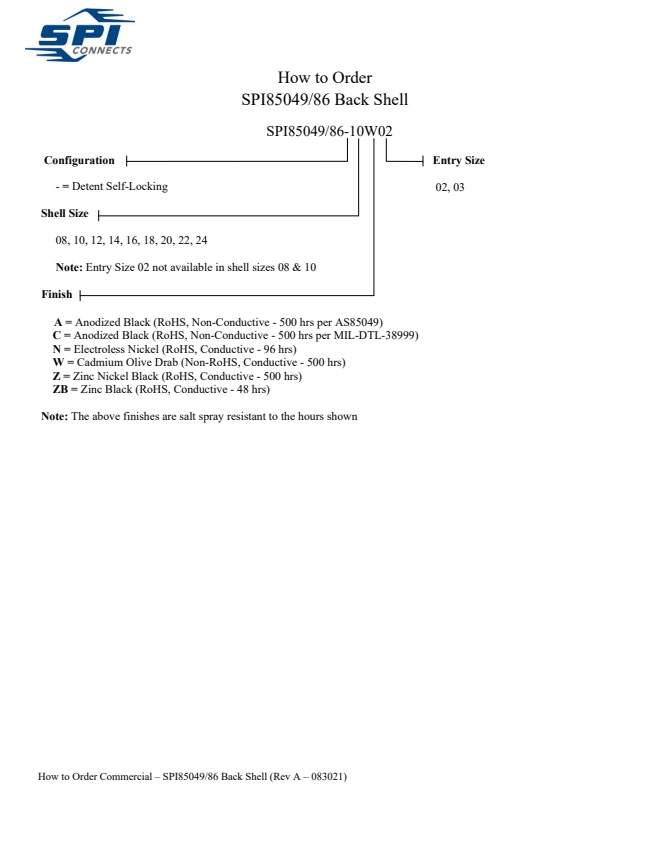

SPI85049/86	M85049/86	AS85049/86	MIL-DTL-38999 Series 1 & II
SPI85049/89	M85049/89	AS85049/89	MIL-DTL-38999 Series III & IV

90° Exit

SPI P/N	Military P/N	Specification	Use on Connector Series

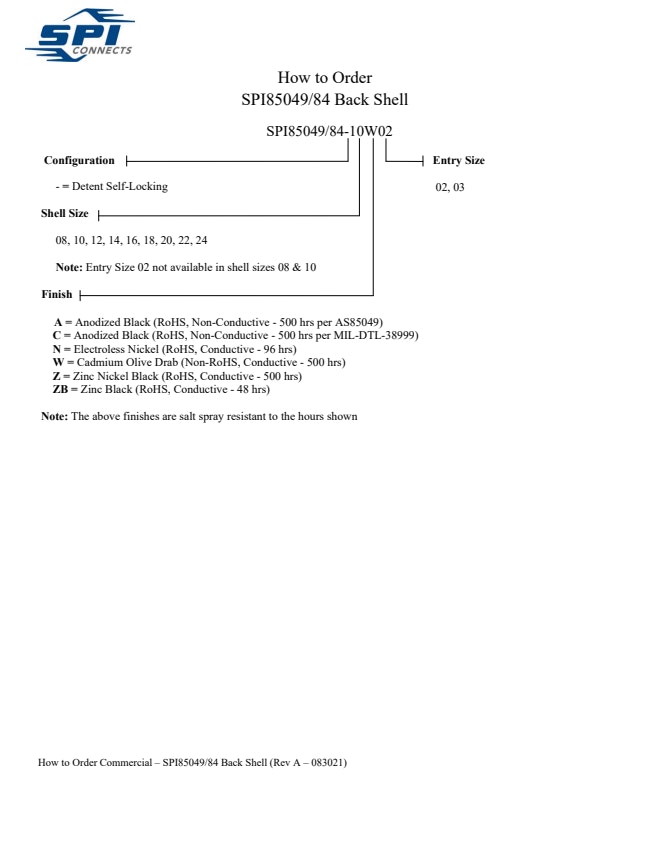

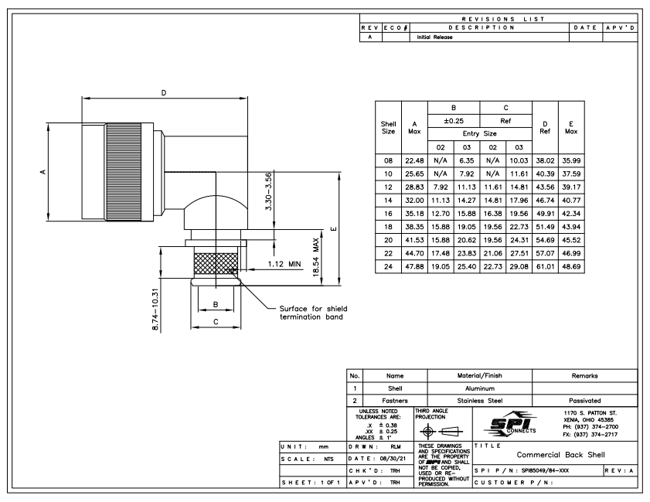

SPI85049/84	M85049/84	AS85049/84	MIL-DTL-5015 Crimp MIL-DTL-26482 Series 2 AS81703 Series 3 MIL-DTL-83723 Series III AS95234
SPI85049/87	M85049/87	AS85049/87	MIL-DTL-38999 Series 1 & II

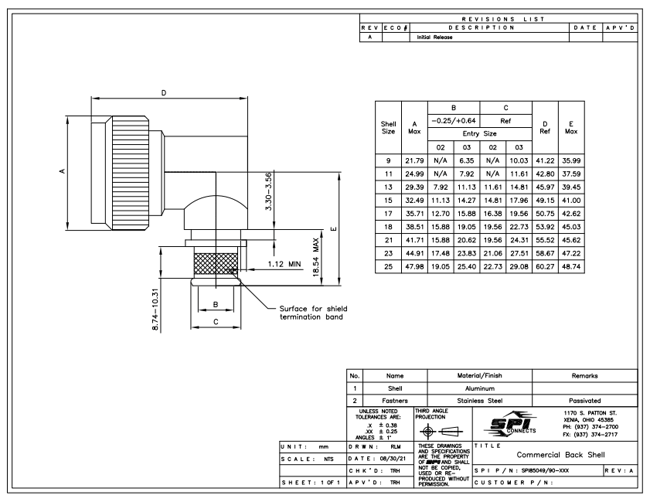

SPI85049/90	M85049/90	AS85049/90	MIL-DTL-38999 Series III & IV

Contact us today to learn more about this product
